Air Theremin: Designing a Gesture-Based Musical Interface

Exploring learnability and spatial interaction in camera-based instruments

Project Snapshot

  • Type: Interactive Web Experiment

  • Focus: Gesture-based interaction · Learnability · Spatial UX

  • Tools: Webcam hand tracking, Web Audio API, AI-assisted prototyping (ChatGPT, Lovable)

  • Key Contribution: Transformed an invisible, hard-to-learn interaction into a visual, guided experience

  • Outcome: A working gesture-controlled instrument with real-time feedback and improved usability

Background

While browsing online, I came across the Theremin - an electronic instrument invented in 1920 that can be played without physical contact. The idea of controlling sound purely through hand movement immediately stood out to me.

Without access to a physical Theremin, I became curious:

Can this invisible interaction be translated into a digital, accessible experience?

This led me to explore building a web-based Theremin using hand tracking, turning a physical instrument into a camera-driven spatial interface.

Problem Framing

After research, I noticed that existing virtual Theremin tools already exist, but they often feel like:

  • technical demos rather than usable instruments

  • difficult for first-time users to understand

  • lacking clear feedback or learning support

As a beginner, I personally struggled to:

  • understand where interaction happens in space

  • control pitch precisely

  • explore different sound possibilities

Goals

Design a digital Theremin that is:

  • Easy to understand

  • Visually guided

  • Expressive to play

Process

I started by validating the idea and reviewing existing browser-based Theremin tools. Most worked technically, but lacked clarity and guidance for first-time users.

Using ChatGPT and Lovable, I quickly built a working prototype with:

  • hand tracking via webcam

  • real-time sound generation

From there, I focused on improving the interaction experience.

A key design decision was to:

  • visualize the instrument itself

I introduced a glowing, outlined Theremin interface:

  • vertical line → pitch control

  • circular loop → volume control

This creates a spatial reference, helping users understand where and how to move.

I iterated on:

  • visual feedback (glow, hand tracking points)

  • pitch display and sound response

  • overall interface clarity in a dark, minimal environment

Result

The result is a browser-based interactive Theremin that:

  • allows users to control sound through hand movement

  • provides visual guidance for better learnability

  • transforms an abstract interaction into a more intuitive experience

Explore the interactive version here: Lovable Prototype

Prompt & Iterations

  • Create a web-based interactive digital Theremin using the user's webcam and hand tracking.

    Core Concept:

    • The application detects both hands using computer vision (MediaPipe or similar).

    • A virtual, glowing outline of a Theremin is displayed on screen to guide interaction.

    • The interface simulates the real Theremin layout:

      • Right side vertical antenna = pitch control

      • Left side horizontal loop = volume control

    Core Features:

    1. Real-time hand tracking using webcam (processed locally in browser).

    2. Audio synthesis using Web Audio API to generate continuous Theremin-like sound.

    3. Smooth pitch transitions (continuous frequency mapping, no stepping).

    4. Volume controlled by distance or vertical position of left hand.

    Visual / Spatial Interface (IMPORTANT):
    5. Render a stylized, glowing outline of a Theremin:

    • Minimal neon line design (no realistic textures)

    • Vertical line on the right (pitch antenna)

    • Curved or horizontal loop on the left (volume control)

    • Slight glow / particle effect

    1. Spatial interaction mapping:

      • As the user’s right hand moves closer to the vertical antenna → higher pitch

      • As the user’s left hand moves near the loop → lower volume (or vice versa)

      • Draw subtle interaction zones around each antenna

    2. Visual feedback:

      • Highlight antenna when hand is nearby

      • Show distance-based glow intensity

      • Render hand tracking points or soft hand silhouettes

      • Optional: draw light trails from hand movement

    Learning / UX Layer:

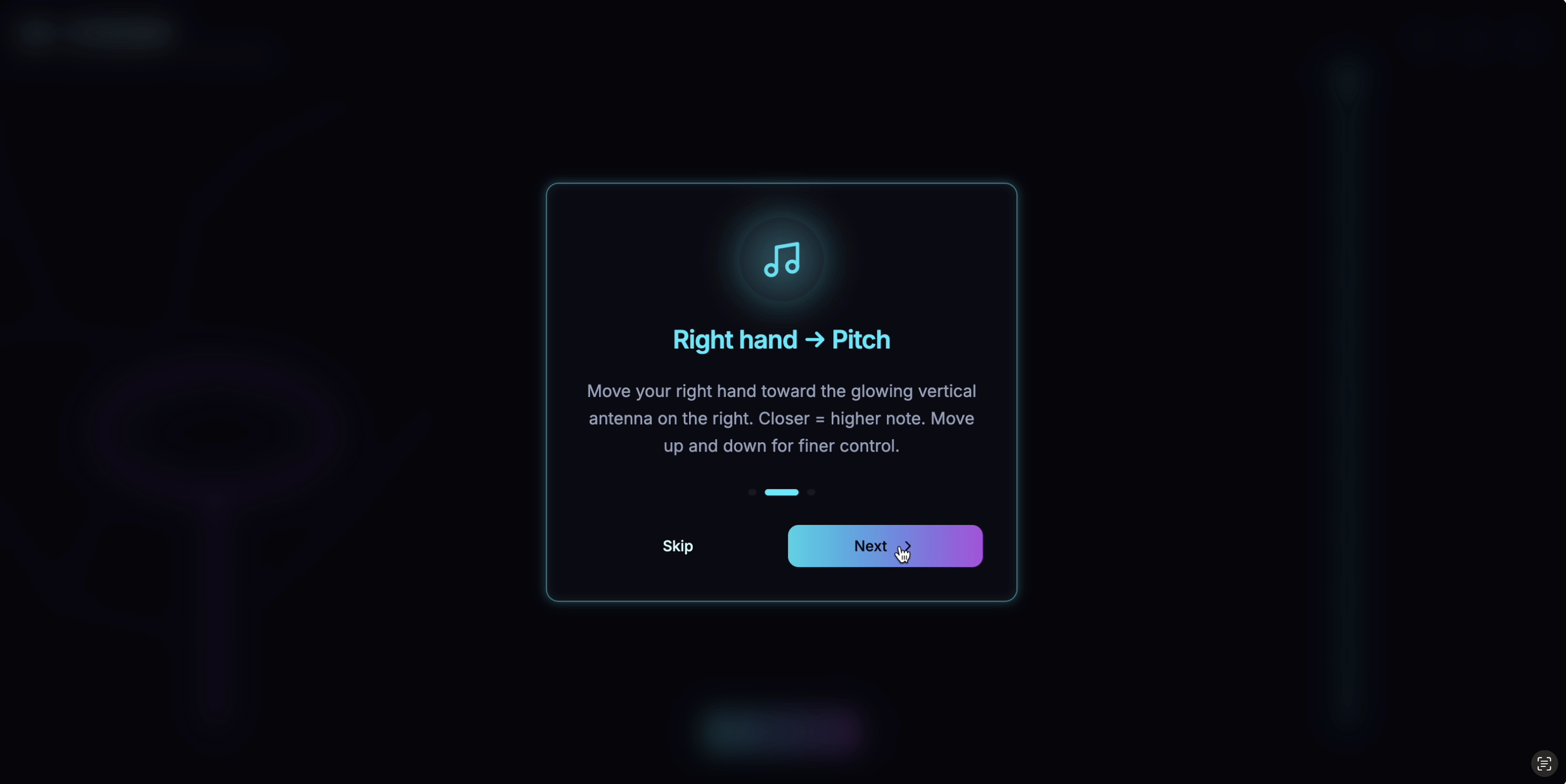

    8. Onboarding tutorial:

    • Step 1: “Move your right hand near the vertical line to control pitch”

    • Step 2: “Move your left hand near the loop to control volume”

    • Use animated ghost hands demonstrating gestures

    • Highlight correct zones in space

    1. Guided practice mode:

      • Show target pitch as a floating line or marker

      • User matches pitch using right hand

      • Provide feedback: accuracy, stability

    2. Gesture hints:

    • Overlay semi-transparent “ideal hand positions”

    • Show spatial zones (heatmap or glow areas)

    UI / Design:

    • Dark background (black or deep space style)

    • Neon glowing lines (blue, purple, or green)

    • Minimal UI, immersive experience

    • Audio-reactive visuals (waves, particles, or glow pulses)

    Technical:

    • Use JavaScript + Web Audio API + MediaPipe Hands

    • Optimize for real-time performance in Chrome

    • No backend required (client-side only)

    Optional Features:

    • Sound presets (sine, ambient, sci-fi)

    • Recording + playback of performance

    • Toggle: show/hide Theremin outline (for advanced users)

  • Prompt: Air Theremin — Gesture-Controlled Web Synth

    Build a client-side web app that turns a webcam into a virtual Theremin played with hand gestures. No backend.

    Stack

    • React 18 + Vite + TypeScript + Tailwind CSS

    • MediaPipe Hands for real-time two-hand tracking (21 landmarks/hand)

    • Web Audio API for synthesis, envelopes, and recording (MediaRecorder)

    • shadcn/ui components, lucide-react icons, sonner for toasts

    Core Interaction (mirrors a real Theremin)

    • Right hand → pitch (vertical position; closer to right antenna = higher)

    • Left hand → volume (distance to left loop; closer = quieter)

    • Glowing on-screen Theremin outline (right antenna + left loop) overlays the mirrored webcam feed

    Features

    1. Free-pitch mode: continuous frequency mapping (80–1200 Hz)

    2. Eyck mode (Carolina Eyck technique): right-hand finger count snaps to scale degrees

      • 0 fingers (fist) → root, 1 → 2nd, 2 → 3rd, 3 → 4th, 4 → 5th, 5 (open) → octave

      • Vertical hand position → octave (3–5)

      • Selectable key (C/D/E/F/G/A) and mode (major/minor)

    3. Instrument presets with realistic synthesis:

      • Piano: percussive 5ms attack, exponential decay, filter sweep 5500→900 Hz, custom harmonics

      • Cello: 180ms swell, vibrato, pitch-tracked filtered pink noise as bow layer

      • Flute, Sine, Ambient, Sci-fi

      • Per-note ADSR envelope triggered on note change (Eyck) or volume onset (free mode)

    4. Practice mode: cycles target pitches; shows accuracy in cents (PERFECT / ¢ readout)

    5. Recording + playback via MediaRecorder

    6. Audio-reactive canvas: AnalyserNode-driven waves/particles, glow pulses

    7. Onboarding modal + Eyck tutorial (multi-step with SVG hand-pose diagrams, based on wikiHow)

    8. Toggle outline for advanced users

    Critical Implementation Details

    • Finger detection: use vector projection along MCP→PIP axis (not wrist distance) — invariant to hand tilt

    • Temporal smoothing: 6-frame majority-vote buffer per finger to stop 3/4/5 flicker

    • Smooth pitch/volume: setTargetAtTime on AudioParams, not direct assignment

    • Mirror video horizontally so movements feel natural

    Visual Design

    • Dark/black space background, neon cyan + purple + pink glow

    • HSL semantic tokens in index.css and tailwind.config.ts (no hardcoded colors in components)

    • Minimal floating UI: top header, centered live readouts (pitch note name + Hz, volume bar, Eyck pose, accuracy), bottom control bar

    • Animations: animate-fade-in, animate-pulse-glow, neon borders

    File Structure

    src/ pages/Index.tsx — main app, hand→audio mapping hooks/useHandTracking.ts — MediaPipe + finger extension + smoothing lib/thereminAudio.ts — Web Audio engine, presets, envelopes, recording lib/eyckScale.ts — finger→degree, y→octave, key/mode math components/ThereminCanvas.tsx — neon outline + audio-reactive visuals components/Onboarding.tsx — 3-step intro components/EyckTutorial.tsx — finger-pose tutorial with SVG diagrams

    UX Copy

    • Title: "AIR · THEREMIN — Gesture-controlled synthesis"

    • Privacy note in onboarding: "No audio is sent anywhere — everything runs in your browser"

    Optimize for Chrome, real-time (60fps tracking + low audio latency).
